Site survey is for gathering customers infrastructural information prior to install.

This can be filled out by the sales person, customer or both if not done by a scheduled tech.

Click on link to open sit survey

 Crosswind site survey)

This is to obtain information from the customer prior to install CrosswindInitialSetUp

This can be filled out by the sales person, the customer or both.

Click on link to open document.

1) The Mach5’s WAN port is connected to the LAN port on the cable modem.
2) The Mach5’s LAN port is connected to port 8 on the GS110.
3) The remaining 6 port on the Netgear GS110 are for connection to the Aastra phones or other devices.
4) Grandstream GX4104 WAN port is connected to port 7 of the Netgear GS110.
5) GX4104 LAN port is connected to the WAN port on the GX 4008.
6) The external bell is connected to FX8 on the Grandstream GX 4008
7) The remaining 7 port on the GX 4008 Fx1-Fx7 connect to the business caller ID box.
8) SUGGESTED  2X2 BACK BOARD
9) If the customer has an exciting switch, any open port can be connected to the “LAN” port on GX4140 or the gx 4008, it can also be connected to any open port on the gs110.

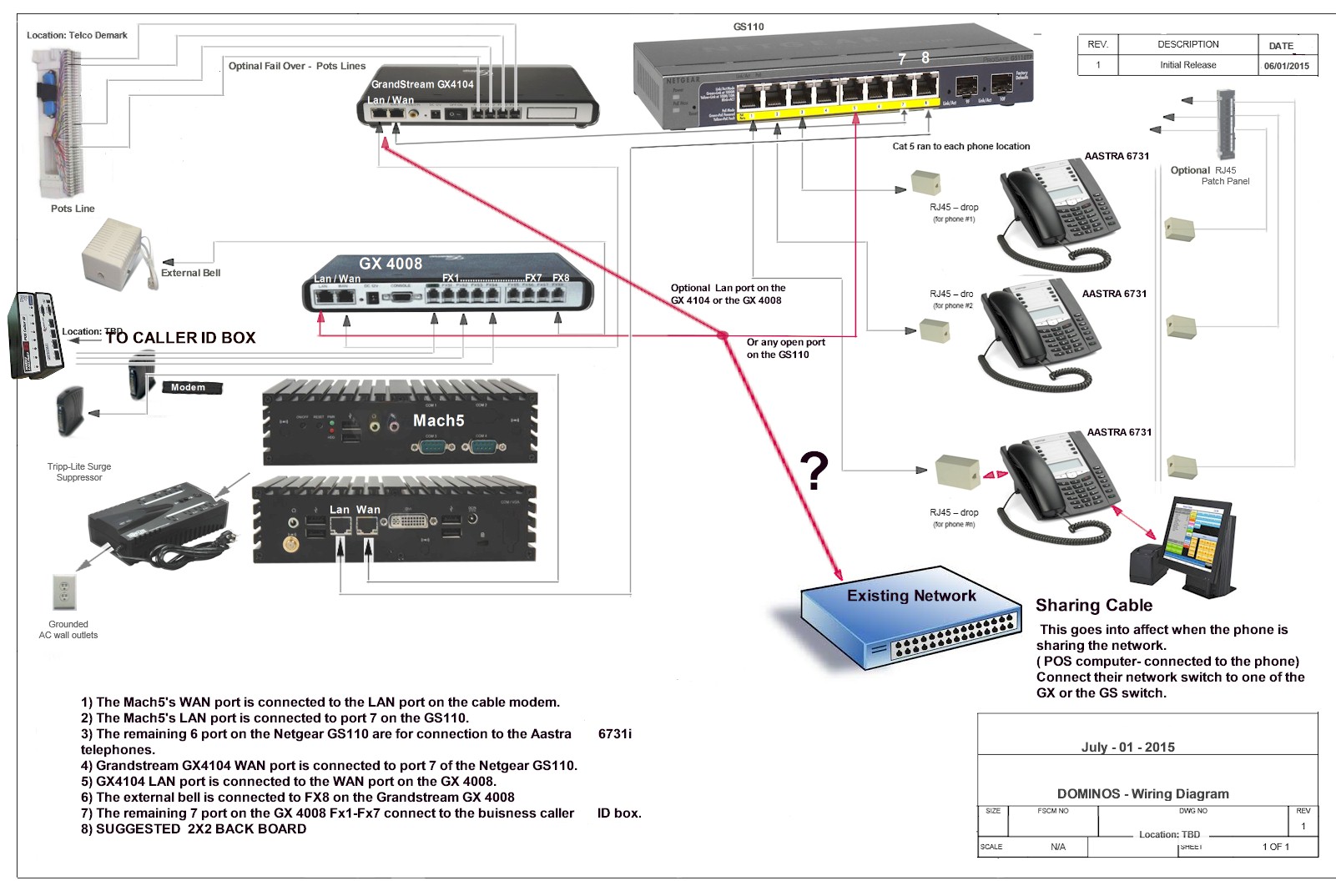

1) The Mach5’s WAN port is connected to the LAN port on the cable modem.
2) The Mach5’s LAN port is connected to port 7 on the GS110.
3) The remaining 6 port on the Netgear GS110 are for connection to the Aastra        6731i telephones.
4) Grandstream GX4104 WAN port is connected to port 7 of the Netgear GS110.
5) GX4104 LAN port is connected to the WAN port on the GX 4008.
6) The external bell is connected to FX8 on the Grandstream GX 4008
7) The remaining 7 port on the GX 4008 Fx1-Fx7 connect to the business caller ID box.

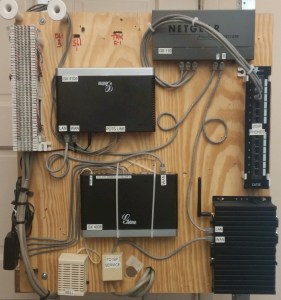

8) SUGGESTED  2X2 BACK BOARD

1) The Mach5’s WAN port is connected to the LAN port on the cable modem.
2) The Mach5’s LAN port is connected to port 8 on the GS110.
3) The remaining 7 port on the Netgear GS110 are for connection to the Aastra phones or any other device.

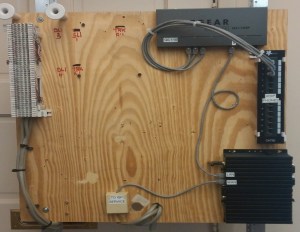

4) SUGGESTED  2X2 BACK BOARD

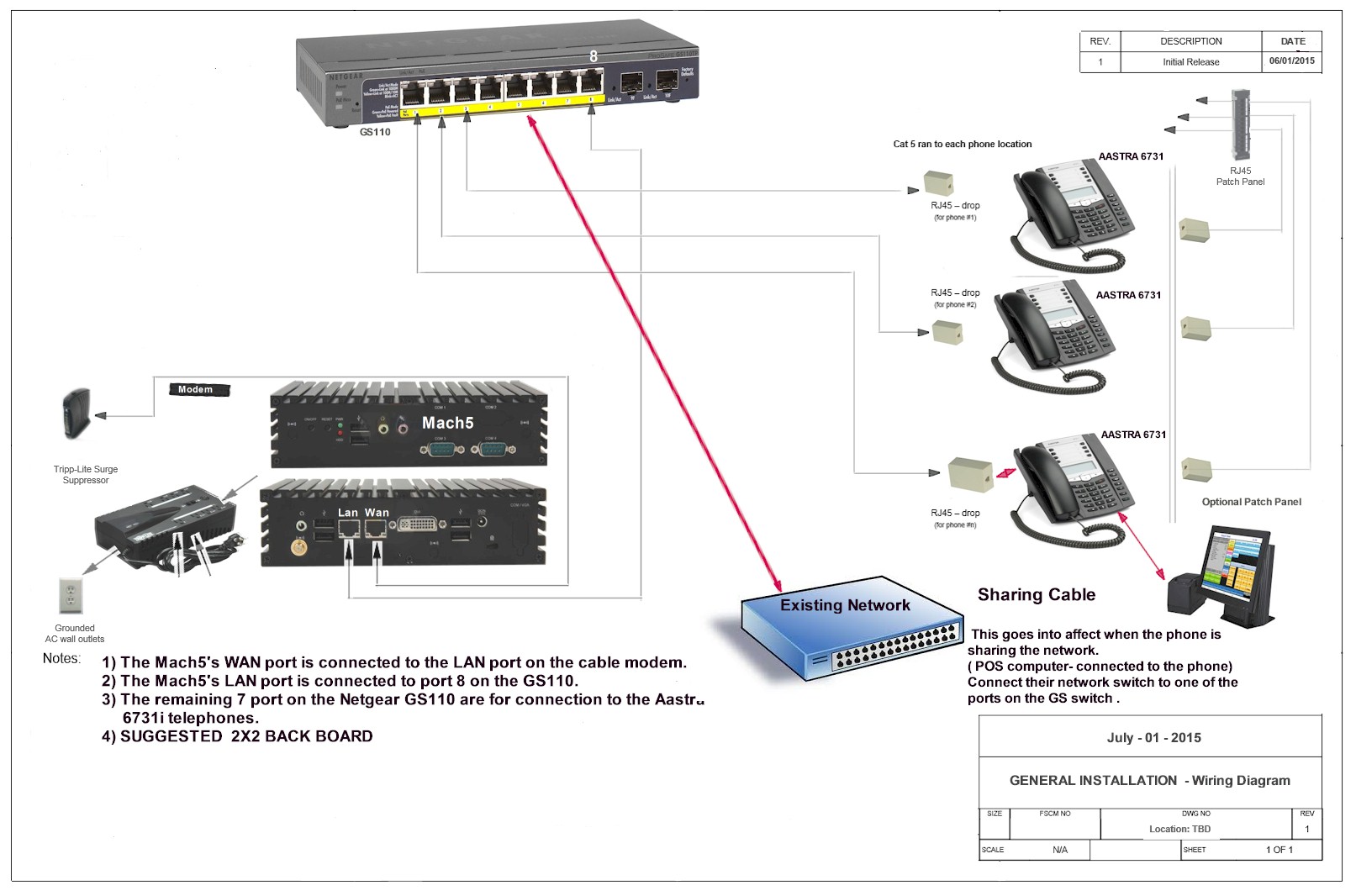

1) The Mach5’s WAN port is connected to the LAN port on the cable modem.
2) The Mach5’s LAN port is connected to port 8 on the GS110.
3) The remaining 7 port on the Netgear GS110 are for connection to the Aastra        6731i telephones.
4) SUGGESTED  2X2 BACK BOARD

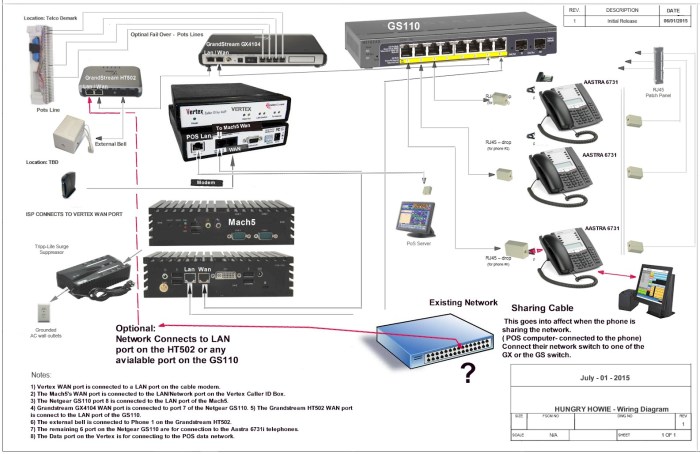

1) Vertex WAN port is connected to a LAN port on the cable modem.
2) The Mach5’s WAN port is connected to the LAN/Network port on the Vertex Caller ID Box.
3) The Netgear GS110 port 8 is connected to the LAN port of the Mach5.
4) Grandstream GX4104 WAN port is connected to port 7 of the Netgear GS110.

5) The Grandstream HT502 WAN port is connect to the LAN port of the GS110.
6) The external bell is connected to Phone 1 on the Grandstream HT502.
7) The remaining 6 port on the Netgear GS110 are for connection to the Aastra 6731i telephones.
8) The Data port on the Vertex is for connecting to the POS data network.
9) SUGGESTED 2X2 BACK BOARD
