Configuring Aastra Phone From Factory

  1. Press the options Key
  2. Go to “Phone Status
  3. Select “IP& Mac Address
  4. Write down the Ip address shown
  5. Open up firefox or other web browser
  6. In the address bar of the web browser enter “http://IPADDRESS_OF_PHONE
  7. When prompted for username/password enter “admin” with password “22222

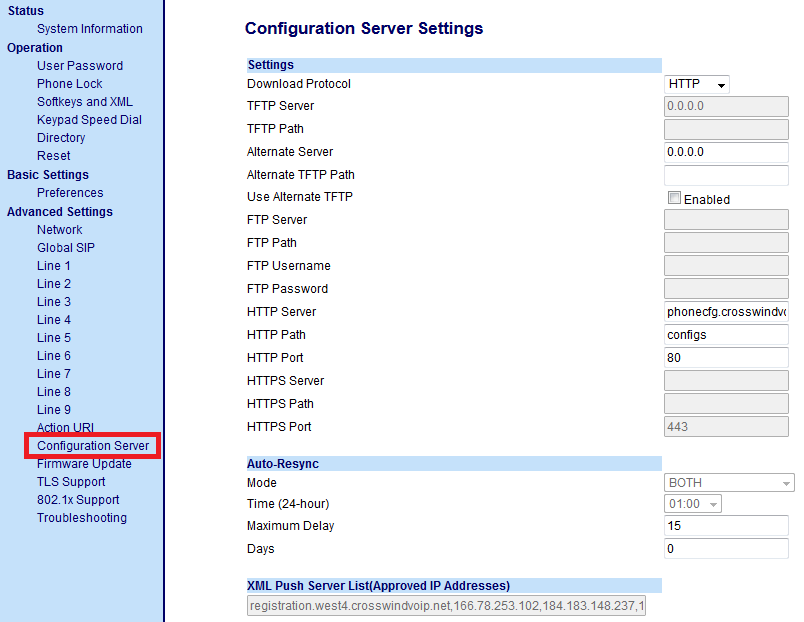

  8. Once logged in navigate to “Configuration Server
    cfg Server
  9. Set “Download Protocol” to “HTTP
  10. Set “HTTP Server” to “
  11. Set “HTTP Path” to “configs
  12. Save the settings
  13. Click “Rest
    Reset Phone

Once completed and the phone has restarted it should come up configured based on its MacAddress.
